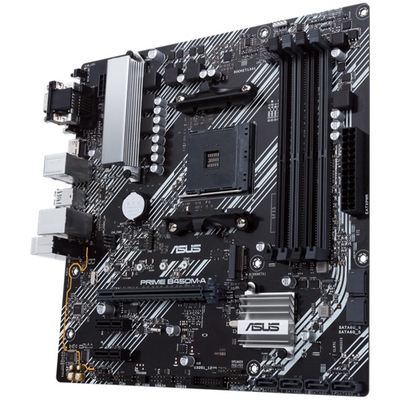

Placa Asus PRIME B450M-A II AMD B450 AM4 Socket, VGA, HDMI, DVI-D, USB 3.2 Gen2

DETALLES DEL PRODUCTO
- Resumen Técnico

  Soporta procesadores AMD AM4 Socket para 3er / 2da / 1er Gen AMD Ryzen / 2da y 1era Gen AMD Ryzen con Radeon Vega Graphics / Athlon con Radeon Vega Graphics, 4 ranuras DDR4 2666 / 2400 / 2133 MHz, Almacenamiento 1 x M.2 slot / 6 x SATA 6Gb/s, Realtek RTL8111H LAN, Realtek 7.1-Channel High Definition Audio, formato mATX.

  Garantía del Producto

  36 meses

  Condición

  Nuevo
ESPECIFICACIONES
- CPU

  AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
  * Refer to www.asus.com for CPU support list

  Chipset

  AMD B450

  Memoria

  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.

  Gráficos

  Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
  1 x D-Sub
  1 x DVI-D
  1 x HDMI 2.0b
  *Graphics specifications may vary between CPU types.

  Slots de Expansión

  3rd/2nd/1st Gen AMD Ryzen™ Processors
  1 x PCIe 3.0 x16 (x16 mode)
  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x8 mode)
  AMD Athlon™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x4 mode)
  AMD B450 chipset
  2 x PCIe 2.0 x1

  Almacenamiento

  Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : *¹
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  Athlon™ with Radeon™ Vega Graphics Processors : *¹
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
  2 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
  AMD B450 chipset :
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10

  LAN

  Realtek® RTL8111H
  ASUS LANGuard

  Audio

  Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :
  - LED-illuminated design
  - Audio Shielding
  - Dedicated audio PCB layers
  - Premium Japanese audio capacitors
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

  Puertos USB

  Rear USB Port ( Total 6 )
  2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A)
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)
  4 x USB 2.0 port(s)

  Software Features

  ASUS Exclusive Software
  Armoury Crate
  - AURA Creator
  - AURA Sync
  AI Suite 3
  - Performance and Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  Fan Xpert 2+
  PC Cleaner
  - EZ update
  - System Information
  ASUS CPU-Z
  AI Charger
  ASUS EZ Installer
  DAEMON Tools
  Norton Anti-virus software (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode

  ASUS Special Features

  ASUS 5X PROTECTION III
  - ASUS DIGI+ VRM
  - ASUS LANGuard
  - ASUS Overvoltage Protection
  - ASUS SafeSlot Core
  - ASUS Stainless-Steel Back I/O
  ASUS Q-Design
  - ASUS Q-DIMM
  - ASUS Q-Slot
  ASUS Thermal Solution
  - Aluminum heatsink design
  ASUS EZ DIY
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  AURA Sync
  - AURA RGB header
  ASUS Lighting Control

  Puertos I/O Traseros

  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
  4 x USB 3.2 Gen 1 (blue) Type-A
  3 x Audio jack(s)
  1 x BIOS FlashBack^™ Button(s)

  Internal I/O

  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x SPI TPM header
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x COM port header
  1 x Speaker connector
  1 x RGB Header

  Accessorios

  User´s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD

  BIOS

  256 Mb Flash ROM, UEFI AMI BIOS

  Sistema Operativo

  Windows® 10 64-bit
  Windows® 7 64-bit *²

  Factor de forma

  mATX Form Factor
  9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )

  Nota

  1*The M.2 slot shares bandwidth with the SATA6G_5/6 ports, and therefore the SATA6G_5/6 ports cannot be used when an M.2 device is installed.
  2*To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.

DESCRIPCIÓN

Adquiere tu Placa Asus PRIME B450M-A II AMD B450 AM4 Socket, VGA, HDMI, DVI-D, USB 3.2 Gen2, hoy mismo a un excelente precio.

NUMERO DE PARTE	PRIME B450M-A II
Generación del Procesador	Ryzen \| 1G, 2G, 3G
Conector USB	USB 2.0 / 3.2
Socket del Motherboard	AMD AM4
Puertos de Video	VGA / HDMI / DVI

No te quedes sin ver modelos similares a este producto en nuestro álbum de Placas Madre. Recuerda que podemos llevar tu producto a la puerta de tu hogar o efectuar envíos a todo el Perú. Somos M&V Technologies la tienda informática online que el Perú prefiere.
